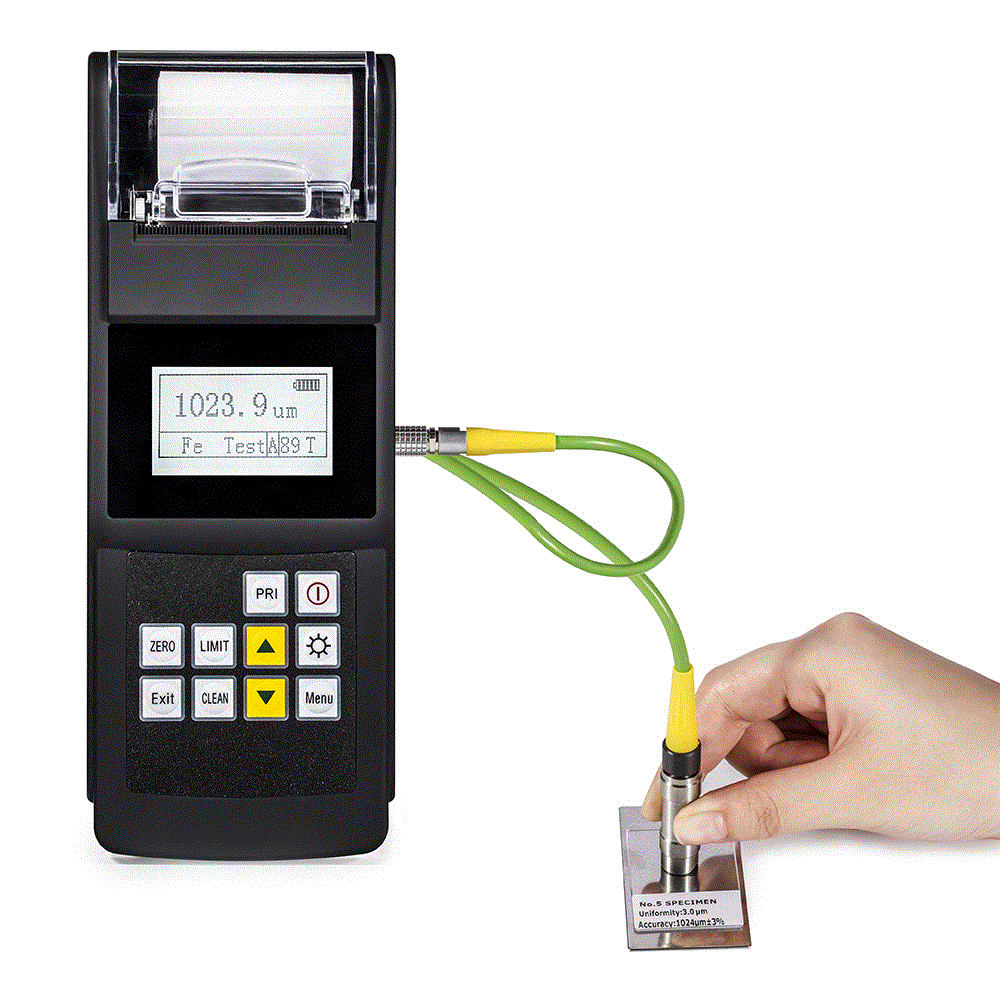

CX-CTG-250, 251, 252 Coated Thickness Meter
Main function：
Ribot coated thickness meter adopts magnetic and eddy current two methods for measurement, can be measure the thickness of non-magnetic cover layer on magnetic metallic coatings nondestructively(such as steel, iron, alloy and hard magnetic steel with aluminum, chromium, copper, zinc, tin, rubber, paint and so on ), and thickness of the non-conductive  insulating cover layer on non-magnetic metal (such as aluminum, copper, zinc, tin, rubber, plastic, on the rubber, plastic ,oil print, oxidation film etc.).

●One-button operation;
●Integrated design, small size.
Technical parameter：

		CTG-250	CTG-251	CTG-522
Measuring head type		F1	N1	F1/N1
Operational principle		Magnetic  induction	Eddy  current	Magnetic induction  or Eddy current
Measuring range		0~1250μm
Lower limit resolution		1μm
Indication error	One-point Calibration	±（3%H+1）
	Two-point Calibration	±[（1~3%)H+1]
Measure condition	The mini. radius of curvature(mm)	bulge 1.5, concave 20
	Mini. area dia.(mm)	Φ10
	Basic critical thickness(mm)	0.5
Working  environment	Temp.	0~40℃
	Humidity	20%~90%
Power supply		AAA alkaline batteries 1.5V（4 pcs）
Overall  dimension		150×55.5×23mm（main body）
Weight		120g
standard configuration		Main body, “AAA”alkaline batteries,  standard test block、basal body
